Resistor to Trimmer Adapter – 10 Pack

£2.00

Adjust that resistance a bit easier with these handy boards!

NEW – Interactive B.O.M Helper

We include a standalone HTML file with each of our boards that helps show you what parts go where (find it in the “Build Docs & Extra Info” Tab)- just extract the zip file to a folder and open the .html file in your internet browser. You can use the table on the left to tick off the parts as you source them / add them to the board – we found its a very handy and a big shout out to Interactive HTML BOM Plugin which is a free plugin on GitHub used to generate these.

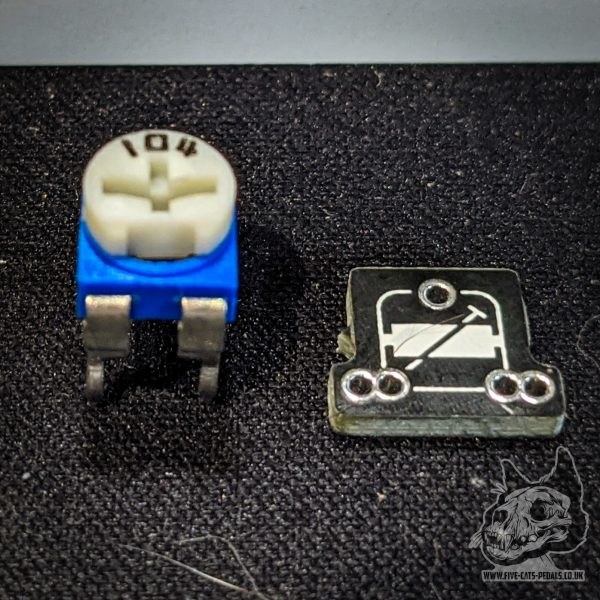

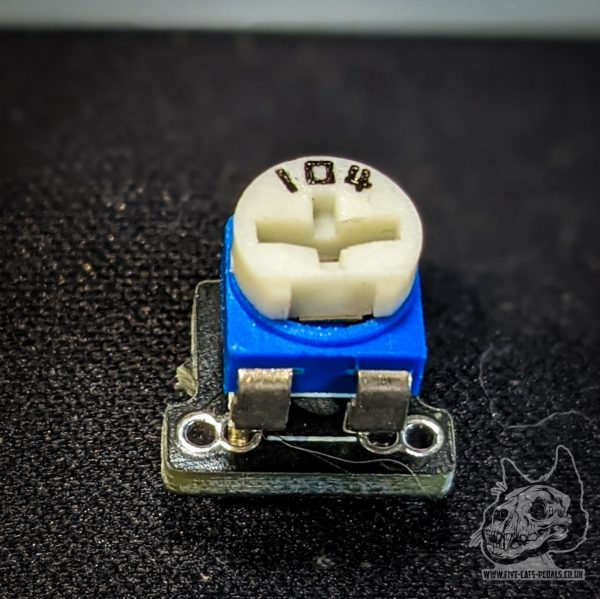

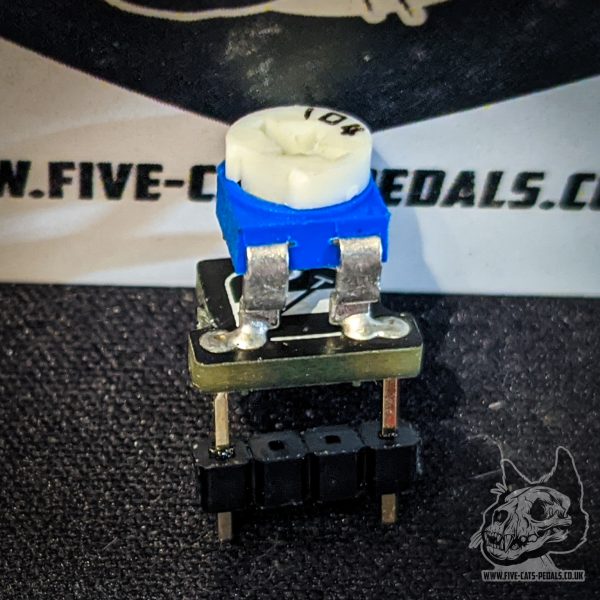

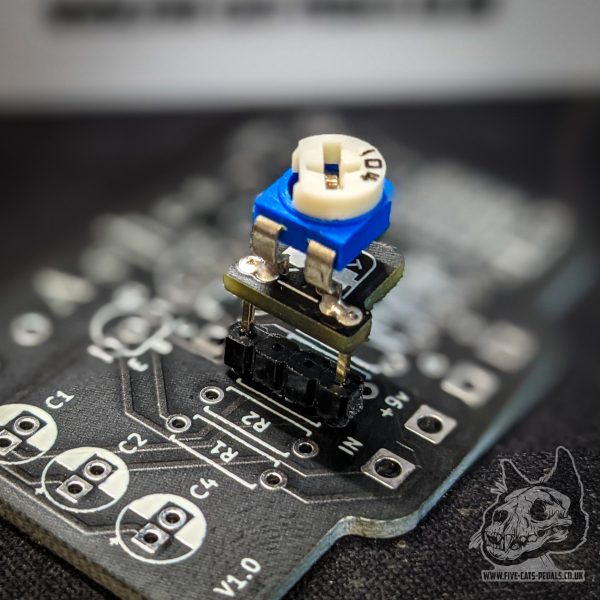

Does what it says on the tin this one! Save yourself some time when trying out different resistors or biasing a transistor - simply connect the adapter board to the connections where the resistor sits on the board (we usually use head pins, but you can use whatever you like) then add a 6mm trimmer to the adatper board and solder it. Job done!

Additional information

General Build Guide Five Cats Pedals - General Build Guide V1.0
