Power Board Adapter – 10 Pack
Make powering your pedals in small spaces that little bit easier!
NEW – Interactive B.O.M Helper
We include a standalone HTML file with each of our boards that helps show you what parts go where (find it in the “Build Docs & Extra Info” Tab)- just extract the zip file to a folder and open the .html file in your internet browser. You can use the table on the left to tick off the parts as you source them / add them to the board – we found its a very handy and a big shout out to Interactive HTML BOM Plugin which is a free plugin on GitHub used to generate these.
These super small but handy boards solder directly to your 2.1mm Lumberg Style dc jacks and give you more room to solder multiple connections - we all know how small the space is inside a 1590a!
Check out the pictures in the gallery to see how it works - it's very simple!
Remember - put the jack in place and the nut BEFORE you solder the board on!
Note: If you want to use these on the larger sockets, it is possible (sacrificing the battery snap pin) - see the pic below for a how to (we don't advise this, but it will work)

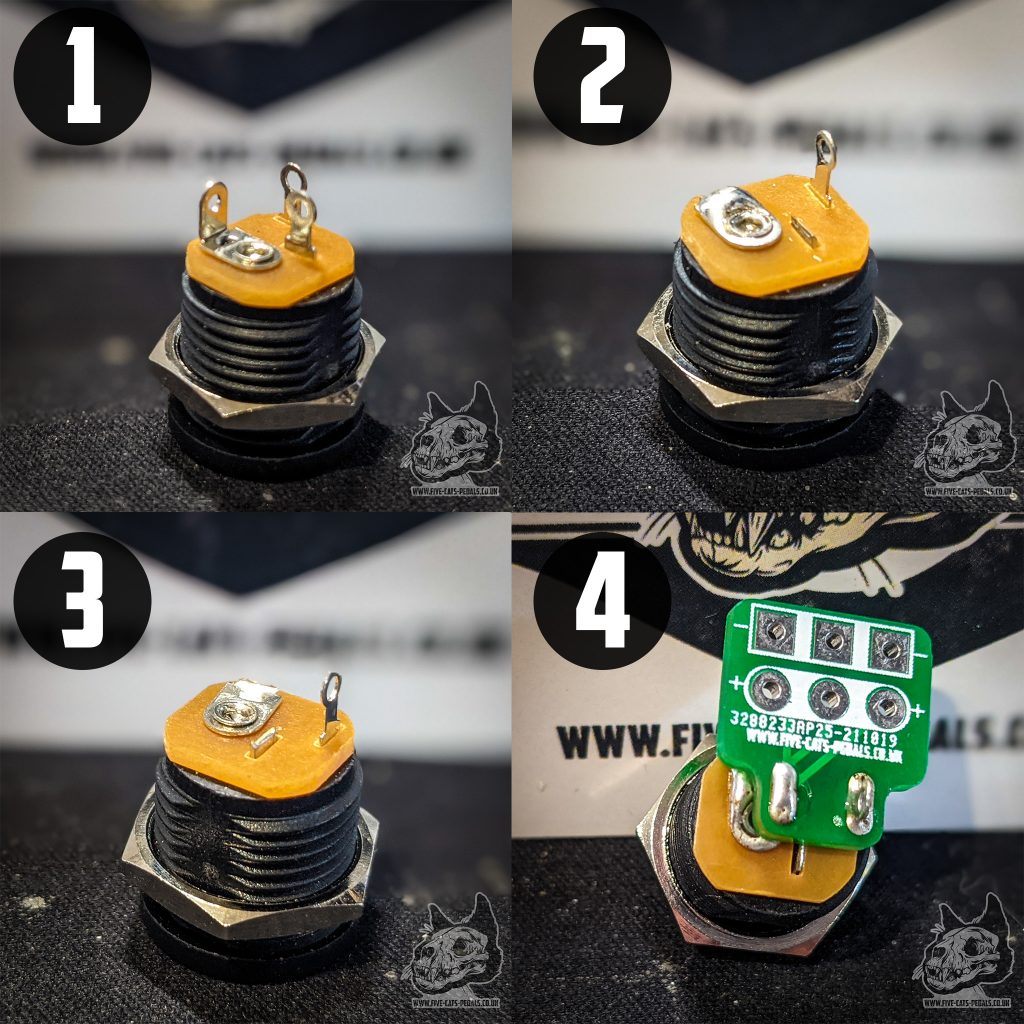

1) Standard jack
2) Cut ground and battery pin
3) Add solder to ground pin plate
4) Add board and solder!
|General Build Guide||Five Cats Pedals - General Build Guide V1.0|
